BIOS mod for MSI Z77A-GD65 to support TPM 2.0?

BIOS/UEFI Modding BIOS Modding Requests
1

Hello friends,

I have a MSI Z77A-GD65 motherboard. It has a in-build TPM header.

I bought a TPM 2.0 module from eBay with same pin-outs but it didn’t work!
I checked the pin-outs from the motherboard manual and eBay listing details.
I think the BIOS supports TPM 1.x modules only.

Is it possible to mod the BIOS to support the TPM 2.0 module also?

2

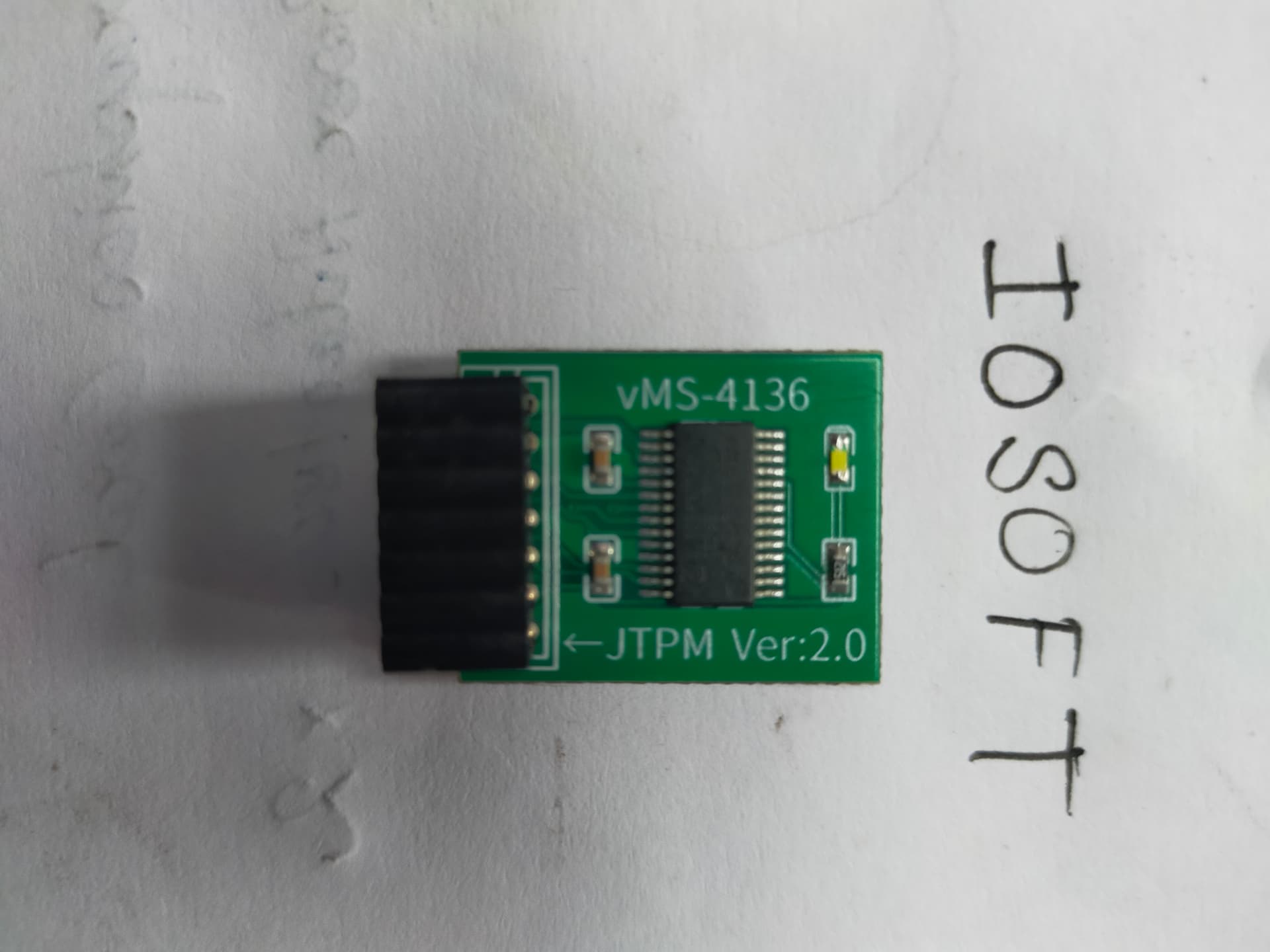

The module -

IMG20241214151535 (1)
IMG20241214151535 (1)1920×1440 89.7 KB

3

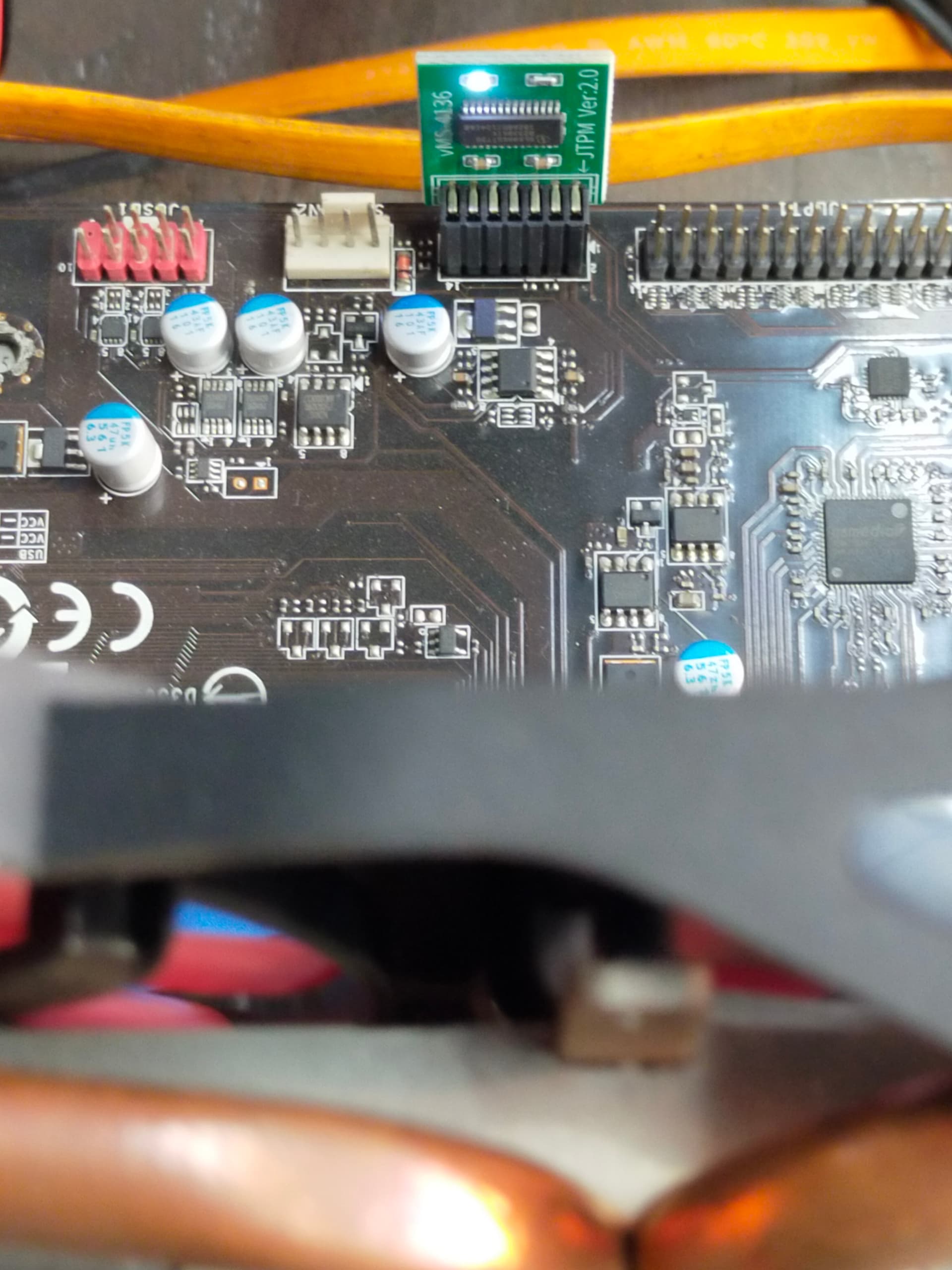

Installation -

IMG20241214151646 (1)
IMG20241214151646 (1)1920×2560 277 KB

4

No, no support on bios or/or in the ME v8.
No reports of successful mods on Intel 7 series, with TPM2.0 implementation.
