[Solved] Gigabyte B85M-D3H v2.0 BIOS with NVMe Boot Support

Hello!
I am trying to boot from PCI-e adapter with M.2 NVMe disk.
BIOS does not see this disk to boot from it.
I really will appreciate your help to mod this BIOS.
Currently BIOS version: FD
https://download.gigabyte.com/FileList/BIOS/mb_bios_ga-b85m-d3h_v2.x_fd.zip

[HowTo] Get full NVMe support for all Systems with an AMI UEFI BIOS - Special Topics / NVMe Support for old Systems - Win-Raid Forum (level1techs.com)

Thanks a lot!

[SOLVED]
Thanks MeatWar for your suggestion!
Here it is the final BIOS modded file for anyone.
Tested and running smooth.

85MD3H20.FD.zip (2.9 MB)


Screenshot 2022-07-04 073453
Screenshot 2022-07-04 073543

Congrats on the successful operation, enjoy the new performance.

1 Like

Helow! The moded bios it s ok ? I have a motherboard gigabyte ga-b85m-d3h rev:2.0 and i want to install a windows in a ssd hardisk with adaptor m.2 nvme , the bios you posted up it is safe to download amd flash the bios ? Thanks !

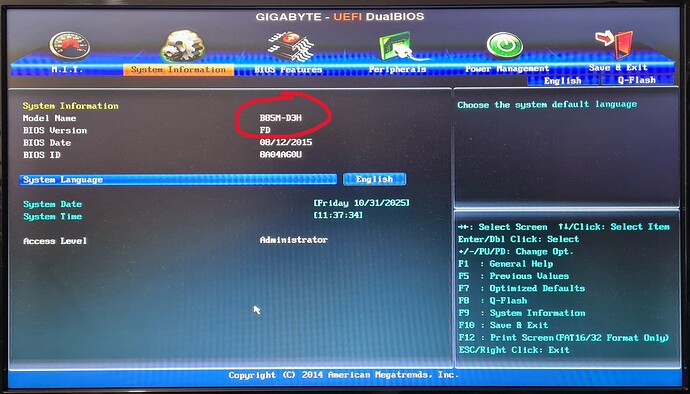

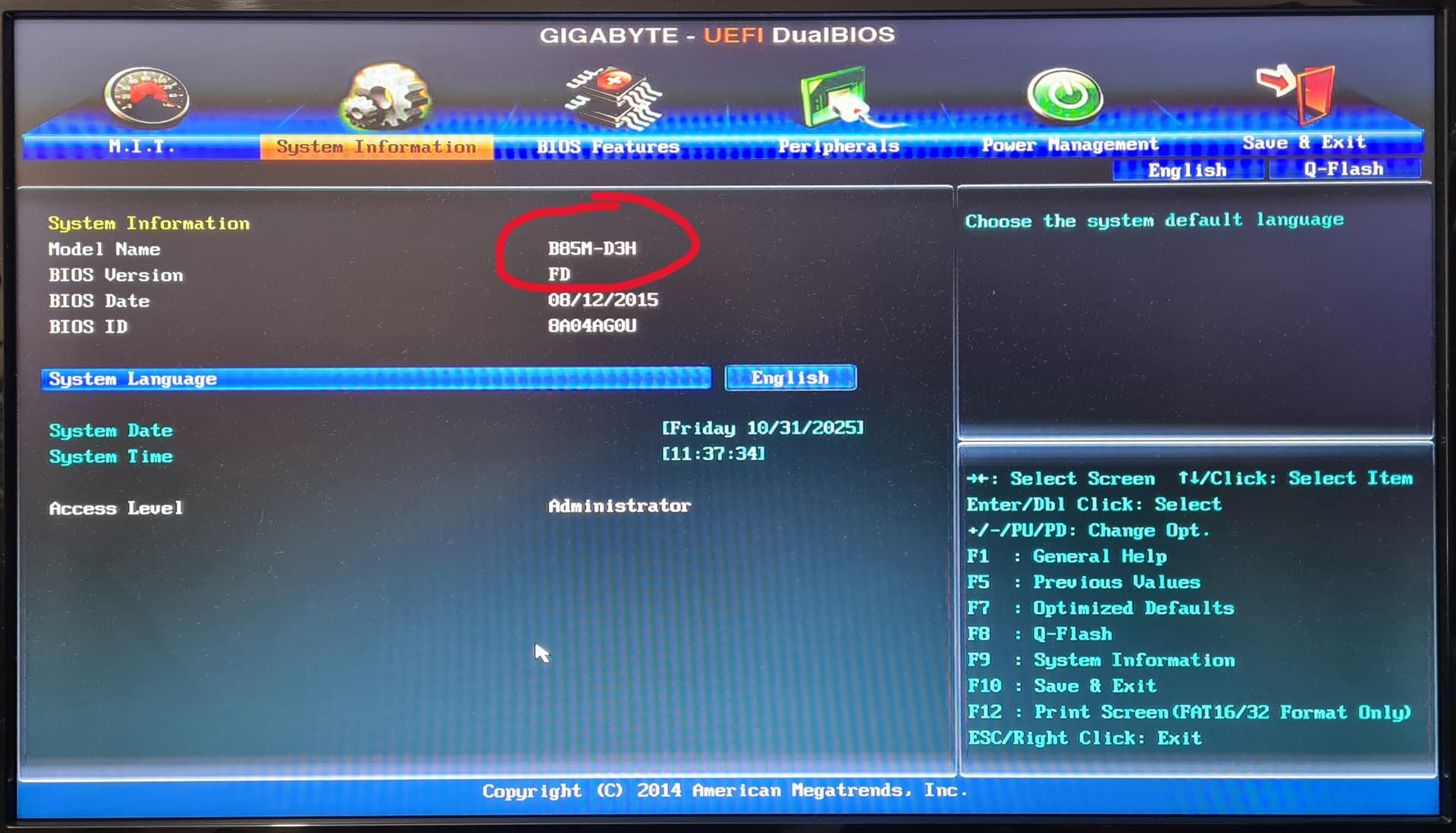

Hi Gabriel! The modified BIOS works perfectly. However, I no longer boot from that M.2 drive; instead, I use it as a secondary drive, using a SATA SSD for the operating system. I’ve used Windows 11 and Windows Server, and in both cases, they boot normally and can access the M.2 drive, which is housed in a PCI-e to M.2 adapter. I hope this information is helpful! Cheers!

Sorry for the english translation. I had to do it because forum rules.

Me alegro mucho por contestar ! Es un ordenador viejo i quiero poner el ssd con adaptor m2 ! Un saludo desde Rumania Bucarest tio !!! Bon dia!
Una pregunta más: ¿el archivo lo descomprimo y lo copio en una memoria USB?

Edit by Fernando: This is an English language Forum! If all Forum members would write with their home language, only a very few people will benefit from its content.

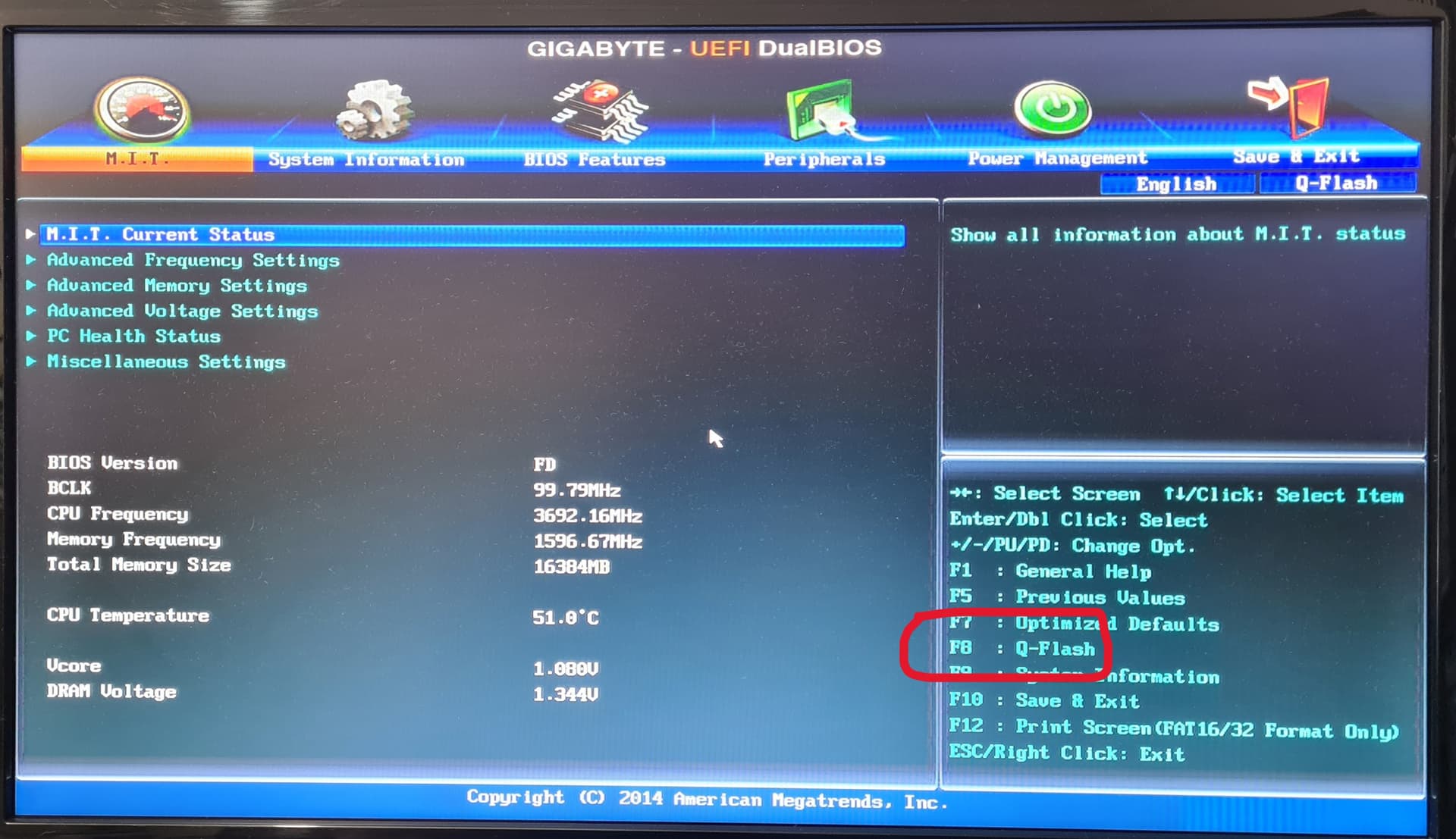

Enter the BIOS, then press F8 (see image).
Yes, the new BIOS version must be saved to a USB drive, and you’ll be able to view it from the Q-Flash screen.
If you have a UPS, it’s best to use it.

Hi, which pcie slot do you use to boot it off?

This is more than obvious… users using iGPU and not dGPU will prefer the 1rst PCIex16 slot for achieving max. performance and negotiating @ PCIe3.0x4, users using a Discrete GPU card will be limited to a PCIe2.0x4 on secondary slot as the only remaining option, NVMe disks PCIe 5.0, 4.0 or 3.0 will have reduced performance, nothing more to do on these old boards.

My mobo gigabyte B85M-D3H can’t boot after replaced cmos battery, I have clear cmos with short pin but still not work, before battery replaced it’s work perfectly with nvme and windows 10. What should I do ?? How to reset bios modified ?

Iam sorry for my bad english

Hi! After BIOS reset, you have to (re)configure it again, as shown in the 1st image.
Once you select the correct disk, it will boot your OS again.
(Images taken from Internet, credits to its author)

Or you can boot to your disk directly from this tab, 2nd image.

Hope you can fix it!
