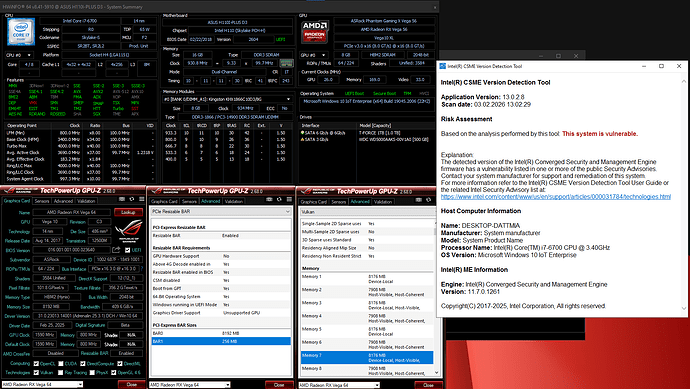

*Screenshot credit to @LyGhT

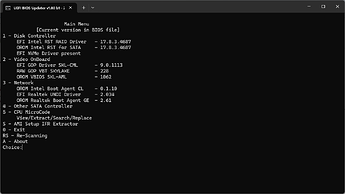

List of updated modules:
ME Firmware Ver: 11.0.10.1002 → 11.7.0.1261 (for Coffee Lake with Intel PTT Support)
Disk Controller:
- EFI Intel RST RAID Driver - 14.8.0.2377 → 15.9.3.3408
- OROM Intel RST for SATA - 14.8.0.2377 → 15.9.3.3408
Video OnBoard:
- EFI GOP Driver SKL-KBL - 9.0.1035 → 9.0.1113
- RAW GOP VBT SKYLAKE - 199 → 228
- OROM VBIOS SKL-KBL - 1036 → 1062
Network:
- EFI Intel Gigabit Driver - 0.0.09 → 0.1.02
- OROM Intel Boot Agent CL - 0.1.05 → 0.1.16
- EFI Realtek UNDI Driver - 2.035 → 2.075
- OROM Realtek Boot Agent GE - 2.61 → 2.70
Microcodes:
- Stock updated to the latest (506E3 - v. F2, 906E9 - v.FA)
- Coffee Lake mCodes (906EA - v.FA | 906EB - v. F6 | 906EC - v.F8 | 906ED - v.F104) (Latest as per 15 February 2026)
Inserted Modules:
- ReBarDxe v0.3
- NvStrapsRebar v0.4-rc1
** CoffeeLake is possible using this bios, if you downgrade the ME Firmware to 11.7.0.1xxx.
- Normal Resizable Bar: Use ReBarSate from here, And Run as Admin.
- Nvidia Turing (GTX 1600/RTX 2000): Use this, And Run as Admin.
You need to enable Above 4G Decoding for Resizable Bar and Disable CSM/Legacy (boot to UEFI only). To enable it, go to bios → Advanced → System Agent (SA) Configuration → Above 4GB MMIO BIOS assignment and enable it.
How to Flash the BIOS
Based from [Guide] How to flash a modded AMI UEFI BIOS, and here, Me and @LyGhT used Afuwin method, which requires afuwin v3.05.04. You might need to transfer your FD44 data from original bios to the modded bios, you can use FD44 Editor, UEFITool v0.25.0/0.25.1 (don’t use newer version as it could cause pad file corruption), or CoffeeTime. Here are the steps using UEFITool v0.25.0:
-
Use intel flash programming tool to make a bios dump (fptw64 -d backup.rom)
-
Open backup.rom with UEFITool v0.25.0, search GUID FD44820B-F1AB-41C0-AE4E-0C55556EB9BD, extract as-is, save the .ffs with any name you wish, and if your bios does have a configured Gbe Region, extract as-is that too.
-
Open the modded.rom you’ve just downloaded with UEFITool v0.25.0, replace as-is the stock FD44820B-F1AB-41C0-AE4E-0C55556EB9BD with the extracted one earlier from your bios dump, and if necessary, the Gbe region too. Once done, save the file, and that bios will be ready to use.
Once everything is done, make sure you’re already in bios v2604. These are the step by step:
-
Download the official bios from asus web, and the modded bios, put both on the folder where afuwin v3.05.04 reside
-

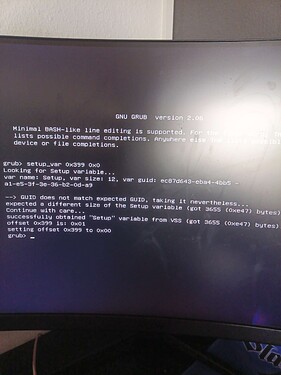

Have a flash drive, make an EFI bootable, and replace the original .efi bootable with mod grub, boot to bios, and boot off the usb (Boot Override to the usb with mod grub), you’ll see something like this:
*photo courtesy to @LyGhT -
After entering mod grub type and enter each line below (these setup_var is only for bios v2604, for other version, you need to find it yourself):
setup_var 0x399 0x0
setup_var_3 0x399 0x0
setup_var 0x38A 0x0
setup_var_3 0x38A 0x0
setup_var 0x38B 0x0
setup_var_3 0x38B 0x0
then type reboot, press enter, it’ll reboot and immidiately reboot to bios, go to efi boot grub again, and this time do the same but it’s 0x1 instead of 0x0, like this:
setup_var 0x399 0x1
setup_var_3 0x399 0x1
setup_var 0x38A 0x1
setup_var_3 0x38A 0x1
setup_var 0x38B 0x1
setup_var_3 0x38B 0x1
then type reboot, press enter, do not go back to bios, let it enter windows (just make sure your ssd/hdd with OS installed is 1st boot order before doing the very 1st step).
What offsets are these? These are:
- 0x399 is ME State
- 0x38A is ME Fw Re-Flash
- 0x38B is Local FW Update
-
Download and check if the ME FW status is unknown using Intel CSMEVDT:
*screenshot courtesy to @LyGhT -
If everything is set, open cmd as admin, change directory to where afuwin reside, type
afuwinx64 officialbios.CAPand enter, wait till it finishes, and then continue withafuwinx64 moddedbios.rom /GAN, wait till it finishes, and after that, reboot your pc. -
Thats all, enjoy the mod
.
**During our testing, we (me and @LyGhT)did an additional afuwin command, which is after running the afuwinx64 officialbios.CAP, we did moddedbios.rom /p /b /k /n /me /x /GAN, which flashed the bios… and it gave Error 18 AFTER flashing it:
Which is wierd, but nevertheless, for safety measure, we repeat the command using /GAN only, and it flashed without the error:
Download: H110I-PLUS-D3_Complete.rar (6.3 MB)
