[Offer] Asus Z97-A BIOS Mods (with ReBar Support)

BIOS/UEFI Modding Offers: Already modded special BIOSes
1

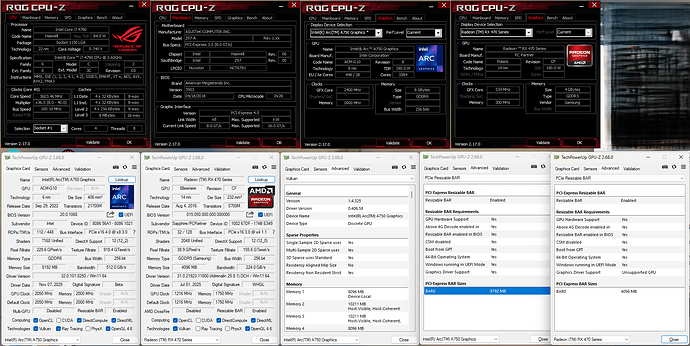

image1919×963 621 KB

List of updated modules:
ME Firmware Ver: 9.1.25.1005 → 9.1.40.1000
Disk Controller

  • EFI Intel RST for SATA - 13.0.0.2075 → 13.5.0.2164
  • OROM Intel RST for SATA - 13.0.0.2075 → 13.5.0.2164 (“Universally Trim Modified” rom)

Video OnBoard

  • EFI GOP Driver HSW-BDW - 5.5.1024 → 5.5.1034
  • OROM VBIOS HSW-BDW - 1029 → 1044

Network

  • EFI Intel PRO1000 UNDI - 6.0.03 → 6.6.04
  • OROM Intel Boot Agent GE - 1.5.47 → 1.5.62

Microcodes:

  • All updated to the latest

Inserted Modules:

  • ReBarDxe v0.3
  • NvStrapsRebar v0.4-rc1

How To Enable Resizable Bar

  • Normal Resizable Bar: Use ReBarSate from here, And Run as Admin.
  • Nvidia Turing (GTX 1600/RTX 2000): Use this, And Run as Admin.

You need to enable Above 4G Decoding for Resizable Bar and Disable CSM/Legacy (boot to UEFI only). To enable it, go to bios → Boot → Above 4G Decoding and enable it.

Download: Z97A_Complete.rar (5.0 MB) (flash using AFUWIN/AFUDOS method from here)

2

Can you help me? I’m trying it with an ASUS Z97M-PLUS motherboard and I can’t get it to work REBARUEFI with a 3060Ti. If I disable CSM it won’t boot (1 and 3 short beeps), and if I don’t enable it, it boots but I can’t access the BIOS and it’s slow in games…

Edit: @Koekieezz helped me and he compiled a new BIOS with an old module of mvramsmi.ffs and rebarUEFI works perfectly.

3

Hi,

i succeeded flashing this bios on my Z97-a (rev. a) motherboard using the “AfuWinx64” version 3.05.04. After enabling ‘Above 4G encoding, disabling ‘csm support’ and rebooting, i tried using the nvStrapRebar (my gpu is the RTX2080 OC) and going for target ‘13’ (8gb). After saving and exiting, i verified with gpu-z and i can see that rebar is disabled still.

Any advice what to try next?

4

@my03 Run nvstrapsrebar (use release 0.4-rc1, since the module i use is v0.4-rc1) as admin, press E, press P, enter value 32 and enter, press S, and reboot.

Check Device Manager → View → Resource by type → Large memory → see if your gpu is listed there.

1 Like
5

Thx heaps,

the rc-1 worked. While i couldn’t find that specific option in device manager, i can now see it enabled via gpu-z :slight_smile: (bar0 16mb, bar1 8192mb, bar2 32mb)

Huge thank you

1 Like
6

image424×489 29.4 KB

image563×270 9.27 KB

7

By bad, i was looking at “drivers by..” and not “resources by..”

I see the gpu listed and its enabled. All good.

Thanks for your help (and the awesome bios)

1 Like
8

Hi Koekieezz,

while this bios works absolutely great, i wanted to ask you if you have seen/recognize this bios bootup message that a drive shows a S.M.A.R.T. error during bootup (where vendor software in W11 will say that there are no issues with it at all).

In my case, i run a 4TB SSD drive that the bios tells me is in a bad shape where Samsung Magician claims it to be quite healthy (?)

9

@my03 Sorry for the late reply, but does this still occurs if you reverted back to stock bios (flashing stock bios via ez flash)?

10

Hi Koekieezz, thanks for reconnecting :slight_smile:

I reflashed the latest (non-beta) bios and i did not see this message any more at bootup. I also run various tests with powershell + chrystaldiskmark (smart) test and this 4tb drive seems to be the healthiest of them all in my case at 99% (have a 2tb at 97% and 120gb at 93% as well).

Its not very severe for me to have this small issue as i can just klick 2 keys and be on my way (because when booted, its working absolutely great :-)). I just wanted to give some heads up about it.

br

1 Like
