Thanks to the Modded BIOS file I have released for this MSI LGA 1151 Socket H310 series motherboard:
Xeon E3-12xx v6 & v5 processors, as well as all 6th, 7th, 8th, and 9th generation processors, will work.

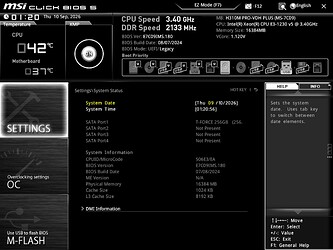

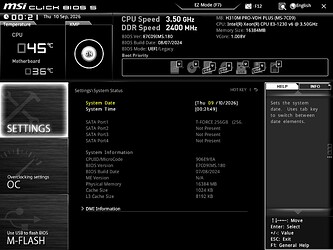

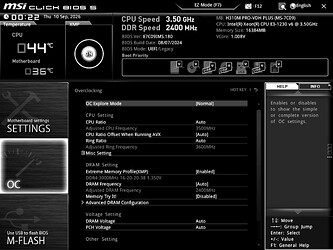

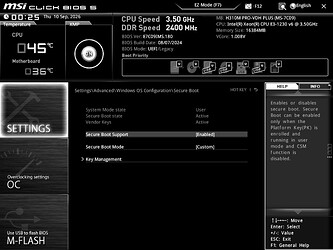

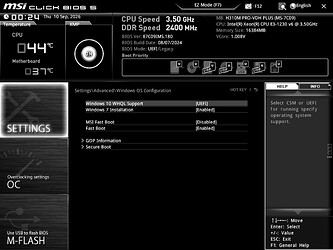

Sample images are provided below.

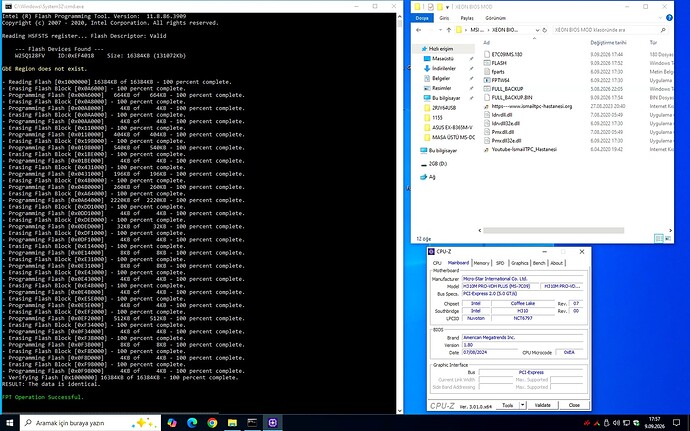

You can only flash the modified BIOS for the MSI H310M PRO-VDH PLUS from within Windows; simply run the “FLASH.BAT” script located in the folder of files I provided.
Important Note: You cannot flash it using M-Flash via the motherboard BIOS itself; the system will not allow it.
If you wish to revert from the modified BIOS to the original factory setup, run the “FULL_BACKUP.BAT” script from the files I provided and wait for the processes on the black screen to complete.
Immediately afterwards, you will have obtained the motherboard’s original BIOS file, named “FULL_BACKUP.BIN,” in the same directory. This is also a complete DUMP file for the motherboard.
This full DUMP BIOS file contains your motherboard’s specific Serial Number, MAC Address, and UUID information.
Keep this file safe.
As mentioned earlier, if you want to revert from the modified BIOS to the original BIOS and factory settings, rename the “FULL_BACKUP.BIN” full-dump file to match the official BIOS filename for your motherboard.
For example:
Rename “FULL_BACKUP.BIN” to “E7C09IMS.180” and run the “FLASH.BAT” script located in the same directory. Wait for the processes on the black screen to finish.
This will restore your motherboard to its original BIOS and factory settings.

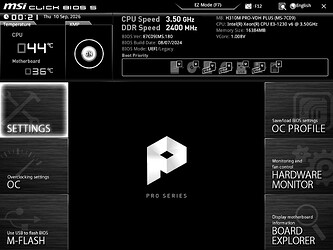

MSI H310M PRO-VDH PLUS Xeon v6 BIOS MOD Other Details

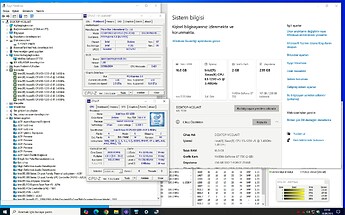

Xeon E3-1230 v6, 3700 MHz

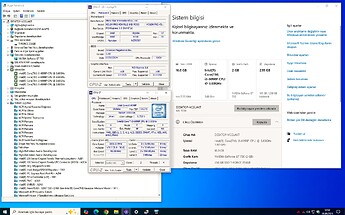

CPU-Z Data Information:
Geekbench Browser:
MSI H310M PRO-VDH PLUS XEON BIOS MOD/Xeon E3-1230 v6, 3700 MHz

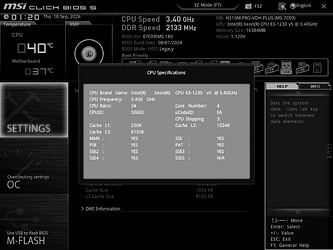

MSI H310M PRO-VDH PLUS Xeon v5 BIOS MOD Other Details

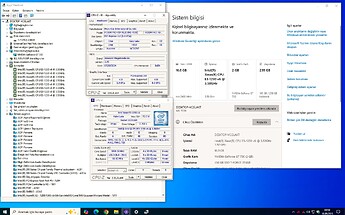

Xeon E3-1230 v5, 3600 MHz

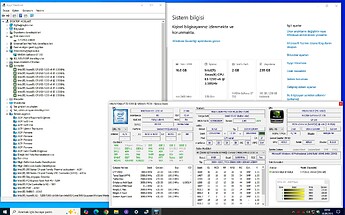

CPU-Z Data Information:
Geekbench Browser:
MSI H310M PRO-VDH PLUS BIOS MOD/Xeon E3-1230 v5, 3600 MHz

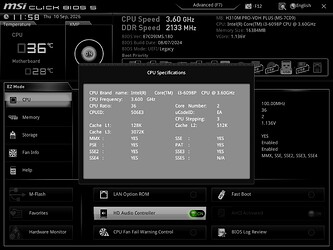

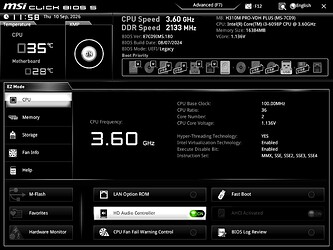

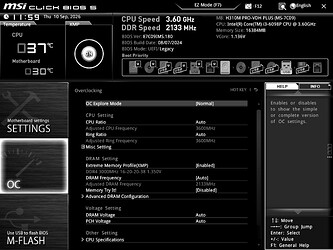

MSI H310M PRO-VDH PLUS Intel® Core™ i3-6098P CPU @ 3.60GHz BIOS MOD Other Details

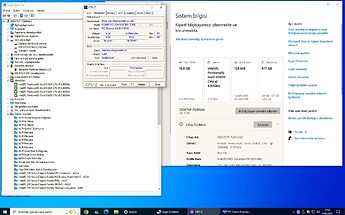

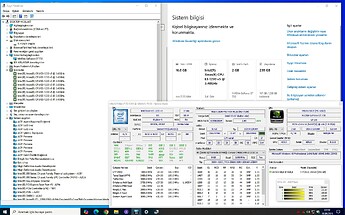

CPU-Z Data Information:
Intel® Core™ i3-6098P CPU @ 3.60GHz
Geekbench Browser:
MSI H310M PRO-VDH PLUS XEON BIOS MOD/Intel® Core™ i3-6098P CPU @ 3.60GHz/
(6th generation processor)
MSI H310M PRO-VDH PLUS Intel(R) Pentium(R) Gold G5420 CPU @ 3.80GHz BIOS MOD Other Details
CPU-Z Data Information:
Intel(R) Pentium(R) Gold G5420 CPU @ 3.80GHz
Once the modified BIOS is installed, the motherboard will continue to operate normally with other officially supported processors.
In short, the modified BIOS has no impact on—and causes no issues with—other processors supported by the motherboard.
