[Offer] Gigabyte GA-B85M-D3PH r1.1 NVME

BIOS/UEFI Modding Offers: Already modded special BIOSes
1

Hi, There!

Strictly following Fernando’s guide, i have just managed to create a working file for GA-B85M-D3PH rev1.1 firmware with bootable nvme

Update your bios to F5 version using Gigabyte’s Tools before modding!
Download: NVME MOD – Google Drive

I flashed it using a formatted FAT32 pendrive and the built-in bios Q-Flash tool.

I’m using a a WD Green SN350 1TB attached to a Generic x4 PCIe3 to M.2 Adapter.
System: Zorin OS 17.3

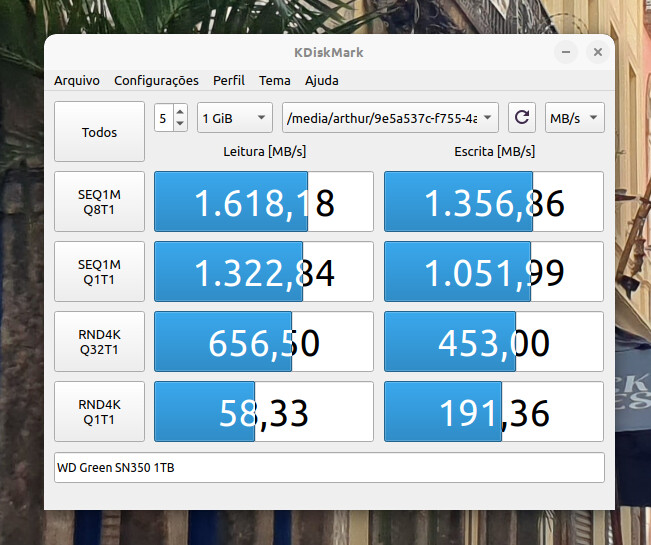

image651×545 114 KB

[test made on the same system version installed on a second ssd]

First time making anything compared to it. Hope it helps! Good Luck

2

No other tweak was needed to make it bootable, not even needed to tweak anything on Zorin Installing.

Link to original guide: [HowTo] Get full NVMe Support for all Systems with an AMI UEFI BIOS

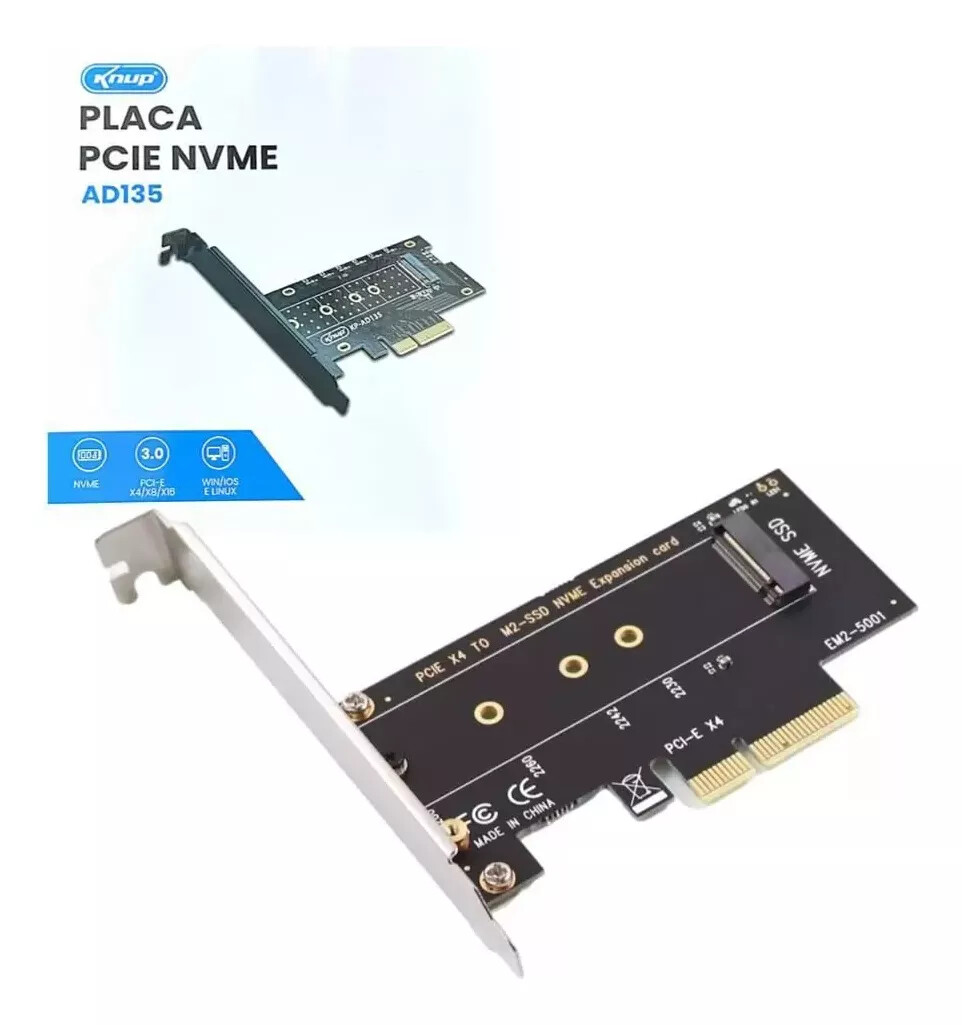

Adapter used: Knup Ad135 (Brazillian Importer)

image962×1025 86.4 KB
