[OFFER] MSi Z68A-GD65 (G3) Bios Mod (fully updated)

[Bepi]

@Koekieezz

your memory works fine, in fact the marvell ports give problems so much so that I have not connected any drives to it. Going through the logs with bluescreenview I found that it always points to the marvell drivers, I tried to find drivers every which way, but nothing, the problem remains.

If it is possible to disable it I will do so, to see if that solves part of the problem.

Maybe before modding the bios, I could try following a tutorial to try to boot the drive using clover.

Did the m.2 drive work for you before modifying the bios? Could you see it in Windows Explorer? Could you use it as a storage drive?

[Koekieezz]

Yes it could, as both a boot drive and a storage drive, but it was pre formatted as gpt since i gpt everything for big storage. Tested the drive on my personal pc (it was B560M Pro) and it is normal, tested it on the Z68 and it could be seen, no special drivers installed, just PnP, but i forgot if it was put on the x16 slot or the slot underneath it. The thing is, i disable marvell, i enable ahci and i vaguely remember there is no csm/uefi option in the bios, so i install secure boot keys and enable secure boot to make sure it is pure uefi.

tl;dr: Yes it work, bios set to AHCI, Marvell disabled, Secure boot installed and enabled, drive at GPT.

[Bepi]

@Koekieezz

I have done

disabled the useless and harmful marvell

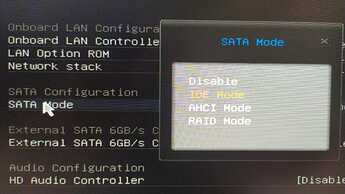

Now if I look at the options on the other ports it also gives me raid. Before it would write me 2 times ahci. I have bios 25.8, the one before the beta.

i forgot if it was put on the x16 slot or the slot underneath it.

it was definitely the x16 because the slot below is a normal pci, while the slots above are all covered by the vga

if i leave it in ide, and connect the m2 disk formatted ntfs, should windows see it?

I searched the entire bios but could find neither the option to disable secure boot nor the other for fast boot.

[Koekieezz]

maybe try to set this:
Sata Mode: AHCI
External Sata 6GB/S: Disable, Save and exit, go to bios again and see if your drive is listed.

@Bepi

if i leave it in ide, and connect the m2 disk formatted ntfs, should windows see it?

Proabably. Or maybe you could try to convert the m.2 disk as gpt, then format it as usual.

[Bepi]

@Koekieezz

no. it did not go well. installed the disc, and enabled ahci

result

restarted the machine and set everything in ide again, as soon as I entered windows everything crashed

bsod error

I removed the extra drive and restarted the machine.

It seems to be more complicated than expected.

[MeatWar]

You cant boot old OS installations after changing to AHCI…it can but it may be difficult to change it manually for an inexperienced user.
Do a clean OS install if your changing the mode to AHCI for HDD/SSD or NVMe boot, other than that stay as before in IDE mode.

You already bought the NVMe adapter so when changing the system to NVMe boot, you clearly going to do this. I do not advise any OS cloning.

EDIT: The BOSD are port driver issues and i dont know what driver you used, the system has to boot with the default MS OOB drivers for SATA, im sure you dont want to lose time on old OS…

Do please read careful the guide, when decided to migrate the system to NVMe boot.

[Bepi]

@MeatWar

Hi,

the first windows installation was done in ahci mode, and in the following days I started having a lot of problems and bsods. I know it is possible to convert partitions from windows, with some program or some command

thanks

[Koekieezz]

Do you have your windows installer at GPT + NTFS or FAT32? Probably need that first

So, reset bios to default, then save and exit, go to bios again, enable AHCI mode, disable External sata 6gb/s, save and exit, and on windows installer after it boots, press shift + f10, type diskpart and enter, type list disk, enter, type sel disk x (x = number list the drive you want to install windows) and enter, type convert gpt and enter (this will reconfig the drive as gpt), and after it finishes, continue to install windows at the drive, and let it finish.

This is a clean install method, speaking in which the drive will be formatted and configured as gpt, and ntfs format again after it is done.

[Bepi]

@Koekieezz

the disks are mbr + ntfs none are gpt formatted, the system does not start with that type of formatting.

I should therefore reformat a disk in gpt, and then prepare a windows installation stick in gpt format. Before installing everything the ports should be set in ahci.

To convert the disk I can use EaseUS Partition Manager, without any data loss, so I wouldn’t even need to reinstall windows.

@MeatWar

Do please read careful the guide, when decided to migrate the system to NVMe boot.

I am going to read it again. There’s probably some part I didn’t understand.

thanks

[Bepi]

@Koekieezz @MeatWar

Hello everyone,

I am writing to seek your help again.

After what has been said in the past few days, I have set everything in ahci. In the bios and under windows. I have been using the system this way for a few days now to try it out.

In previous conversations you told me that if you connected the m2 drive, before modifying the bios, it was seen by the system as a storage disk. Is that correct, or have I misunderstood?

The problem arises when I connect the m2 disk with adapter to the pcie.The disk is not even seen by the system as a storage disk.
Windows does not start , it goes directly to bsod or it starts and after a few moments on the desktop bsod again.I can start it in safe mode, but the m2 drive does not appear in any way, not even in disk management.

these are the errors it gives me at bsod

I have searched in the bios to see if there are any options I can enable/disable, but I can’t find anything in particular.

intel rapid start tecnology disabled
intel smart connect technology disabled
AHCI intel sata enabled
External Sata 6GB/S disabled
SATA Controller not set to “RAID”

is it a motherboard problem? or windows again? does the disk m2 have to have some kind of special formatting? i left it as it came, so ntfs.

thank you for your help.

[Koekieezz]

Is the windows clean install or not? Like did you done a clean install on the nvme only? So bios settings necesarry has been set as per what you said, windows installer on gpt (if you use rufus, before burning the iso set it to gpt), then install it on the m2 ssd after the ssd been converted to gpt? TL;DR: SSD formatted to gpt + windows installer on gpt? And you do sure your nvme is not faulty and/or the adapter not faulty? NVMe drives usually appears on Storage Controllers instead of IDE ATA/ATAPI Controllers list.

AFAIK Yes i did plug the nvme + the adapter, preformatted it to gpt before using it on that z68 of mine (was)

If you do need the driver (well it might not affects it at all since this is sata drivers), try this . Chipset driver use this, and ME driver use this.

Im pretty sure you do know how to install .inf drivers through Device Manager.

And please re check, if you did everything and every setting in the bios, after you save andexit enter the bios again and check wether the settings you’ve changed reverted/unchanged or changed, if it’s changed as per what you did set, then it should be ok, just do another save and exit.

If you do plan to clean install everything, make sure to re download the windows of your choice .iso, use the latest rufus and set the installation to UEFI + GPT (no CSM), burn it to your flash drive, when you boot to the windows install bootable you just made with rufus, Shift + F10, diskpart, list disk and sel disk x (x = your nvme in the list disk lists), clean all (this will nuke the entire ssd, usually clean is enough instead of clean all), wait a bit till it finishes, then convert gpt, wait till it finishes, and after it finishes proceed to install windows using custom option → choose the uninitialized nvme (not even formatted to ntfs, just gpt configured), install but dont forget to disconnect the internet, then go to windows, install the Chipset Driver → restart later, and ME Drivers (AHCI Drivers are optional) i gave, reboot, and you’re good to go to install any drivers, the point is after installing windows do not connect to internet untill chipset driver and ME drivers are installed and did a good reboot, so that windows update wont mess with your installation.

[Bepi]

@Koekieezz

hello, thank you for assisting me again.

After reading everything you’ve written I decided to give it a try and create a stick with clover. I’ve been running various tests for 2 days.

Here what happened

[Guide] NVMe-boot without modding your UEFI/BIOS (Clover-EFI bootloader method)

UPdate After failing miserably with system one, I switched to system two. I followed this procedure. After logging in, and a few attempts, I managed to launch the clean Windows installation. The problem was that on reboot, it did not want to go back into the windows installation. So I took the clover boot key, and with that I was able to launch the continued installation. completed the installation, and finally [immagine] at least now I know that everything works and probably if I modd…

I managed to start the m2 disk via external bootloader.

Now that I know it is possible, I would like to ask for your help in preparing a ready-to-install bios so that I don’t have to use the bootloader.
Do you think it is possible to switch from the bios I currently have installed, 25.8, directly to the newer version without having to do many downgrades?

among other things, i would like to install the modded version on only one of the firmwares, so that in case, the other one can recover by itself if something goes wrong.

thanks for your help

[Koekieezz]

The “downgrades” you mentioned is only necesarry IF you do want to update the 2nd bios chip, since the stock bios on that 2nd chip are usually sandy bridge bios, unless you do know that the 2nd bios is alrd ivy bridge and you do use ivy bridge, otherwise, you could just flash the same modded bios or the P93 (25.9B3) bios, didn’t i told you abt this before?

[Bepi]

@Koekieezz

hello,

is there any way to know what’s in the two bios? i couldn’t find anything in the user manual. Going to look in the bios the situation is this

I think I understand that with auto update disabled, the bios does not copy the different bios versions to each other, or perhaps it does not update if one is corrupted.

you could just flash the same modded bios or the P93 (25.9B3) bios

what’s different in the new bios? just bug fixes or new functions? by the way, I have searched all over the bios but cannot find an entry indicating secure boot, is this a problem?

thanks for your help

[Koekieezz]

@Bepi

what’s different in the new bios? just bug fixes or new functions? by the way, I have searched all over the bios but cannot find an entry indicating secure boot, is this a problem?

Yes there are minor bugfix

@Bepi

is there any way to know what’s in the two bios? i couldn’t find anything in the user manual. Going to look in the bios the situation is this

Sorry i dont quite understand what you’ve meant, did you mean how to know what’s inside/what bios ver is the 2nd bios? Well one way to find out is to purposely corrupt the main bios, not recommended unless you understand the procedure to update the 2nd bios, which i have posted above.
