PowerEdge R740 working dump U217 MX25L3233F and 25Q128F are needed

Hello,

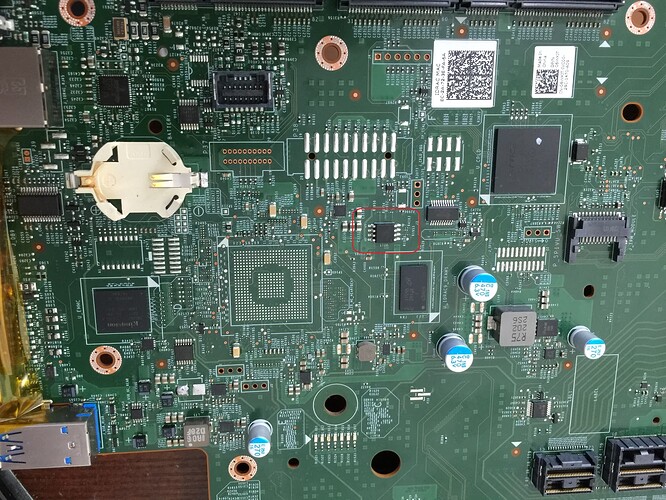

Does anyone have working PowerEdge R740 dump U217 MX25L3233F and 25Q128F ?
please pm, post(attache), help !

Dell PowerEdge R740 bios - Badcaps

MeatWar thank you, i have seen that before, there is no BMC dump MX25L3233F (U217 needed), only main bios dump MX25L256

Can anyone measure the resistance on coil L12 3.3V (near USB, EMMC chip) and coil L46 1V near CPU1 ?


who knows what content stores in 25Q128F. (128Mbyte) flash ? my own is full of FF FF, is that normal ?

No, its not, if all content is like that, that’s usually a bad reading/set up of the programmer for the W25Q128F

EDIT: Then correct the previous thread title/posts information…cause there’s only reference to other ICs, dont confuse users and mess the post.

1 Like

used both ch341a&orange5 same readings, in that case need working dump
