Hello folks, my Zephyrus has a bricked bios and I am trying to recover it. So far I took it apart and found out that there are 2 Winbond chips on the motherboard.
One could be EC bios and the other one the main bios so I need some help identifying the right one before I read and dump from the chip.
1st one is located next to the RAM and is Winbond 25Q80EWING 1805 (1.8V 8M-BIT)
2nd one is near the SSD and display connector - Winbond 25Q80DVSIG 1803 (3V 8M-BIT)
If I read both I am not sure how to identify the one that holds the actual bios. I am not certain how to proceed as of now so any help will be greatly appreciated.
Edit: I also located another chip candidate: 25B127DSIG, note that 25Q80EWING looks slightly smaller than the other two chips.
Hi. did you manage to identify wich on is wich?
Similar issue

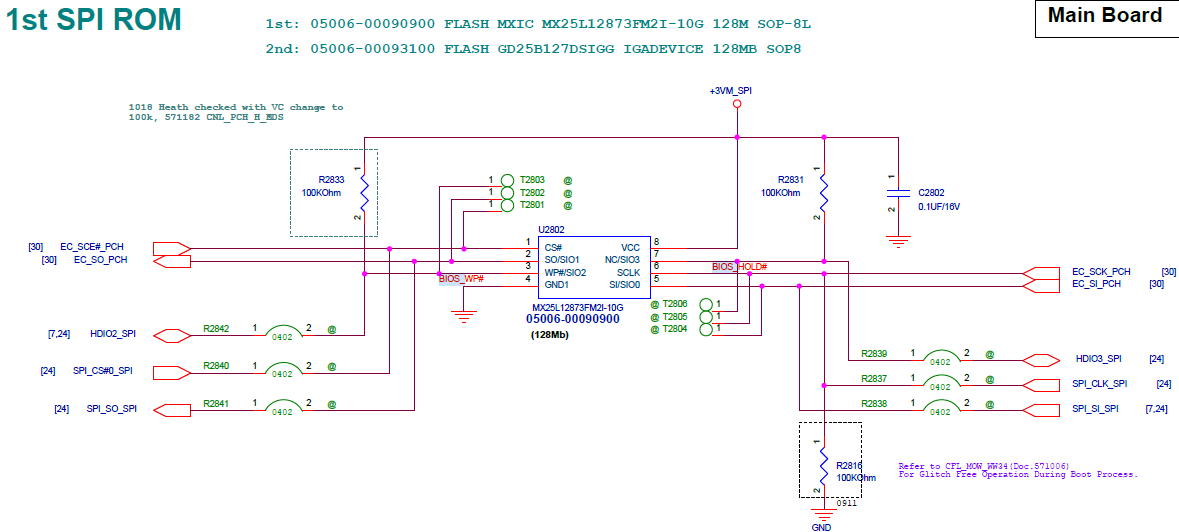

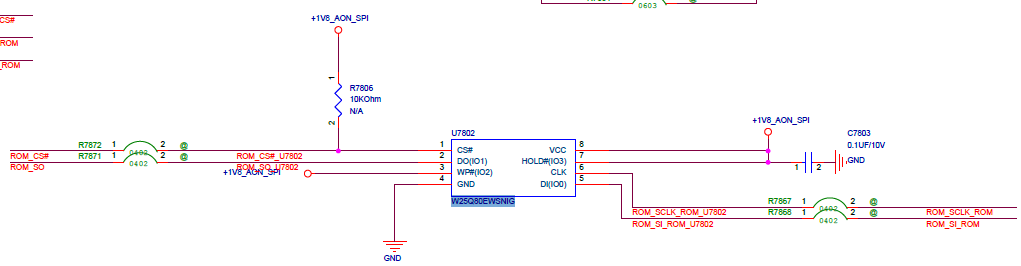

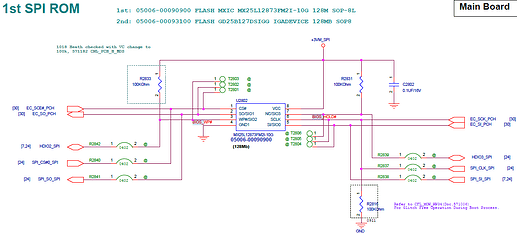

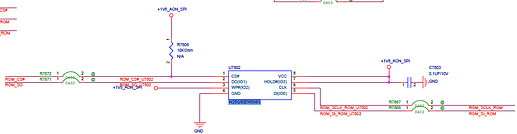

GD25B127D is the main IC, the others ones referred as possible candidates for CSME/EC/NVidia vbios,etc…
thank you! you’re a lifesaver
