[Request] ASUS X99-PRO/USB 3.1 BIOS with Resiz. BAR

BIOS/UEFI Modding BIOS Modding Requests
1

tppu
tppu775×1035 33.4 KB

i add Xeon V3 "Full Turbo UNLOCK
i nd Resizable BAR

Enter ReBarState Value
0: Disabled
Above 0: Maximum BAR size set to 2^x MB
32: Unlimited BAR size

32
Writing value to ReBarState

Failed to write ReBarState UEFI variable
GetLastError: 5
You can close the app now

my bios


Edit by Fernando: Thread title customized

2

here

1 Like
3

thank you!

4

i cannot enter the bios now but Resizable BAR is ON
And turbo UNLOCK is Off

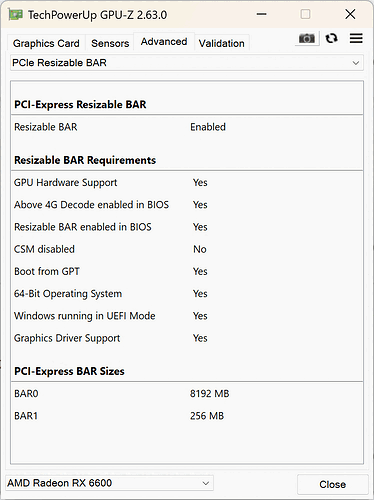

aftr
aftr775×1035 33.1 KB

5

Try disabling CSM first before enabling R-Bar.

6

i cannot acess to bios

7

Disable ReBarUEFI.

8

i Disable ReBarUEFI
black screen in bios

9

try this one here, use FPT ME System Tools v9.1 from here “FPTw.exe -f MMTool_mod.rom”

10

same no lack

11

could you send your original dump without mod?

12
13

here

14

hi and tnx for u time this img have ReBar and Turbo UNLOCK?

15

Only ReBarUEFI, as I have no interest in overclocking.

16

ok tnx u?

17

Greetings @jols45 ,

Have you applied the Patches to the ReBAR file you made?

GetLastError: 5 is common and is usually fixed by applying the patches.

Also, as you have USB3.1 you might need to apply a patch for that too

USB3 patches here depending on which CPU you are using

Best regards and good luck,

-68k

1 Like
19

hi 68k-dude
1>yes
2.yes
but

tppu
tppu775×1035 33.4 KB

cpu-z
Report.zip (20.2 KB)

20

Hi @jols45 o/

Have you tried to enter a ReBarState Value of 13 to set 8GB BAR size ?

21

yes i tried.
karfel bios have Resizable BAR is ON but lost turbo UNLOCK and bios img
