[Request] BIOS modification help for ASUS K6604JV

BIOS/UEFI Modding BIOS Modding Requests
1

Hi everyone,
I need help unblocking the undervolting on this damned ASUS BIOS.

My laptop model is: https://www.asus.com/it/laptops/for-creators/vivobook/vivobook-pro-16x-oled-k6604/helpdesk_download/?model2Name=K6604JV

I checked the BIOS but couldn’t find any options. The interface for these BIOSes is locked and won’t allow any advanced changes.

The manufacturer is AMI.

Does anyone have experience with these BIOSes and could you please help me?

Thank you all in advance.

2

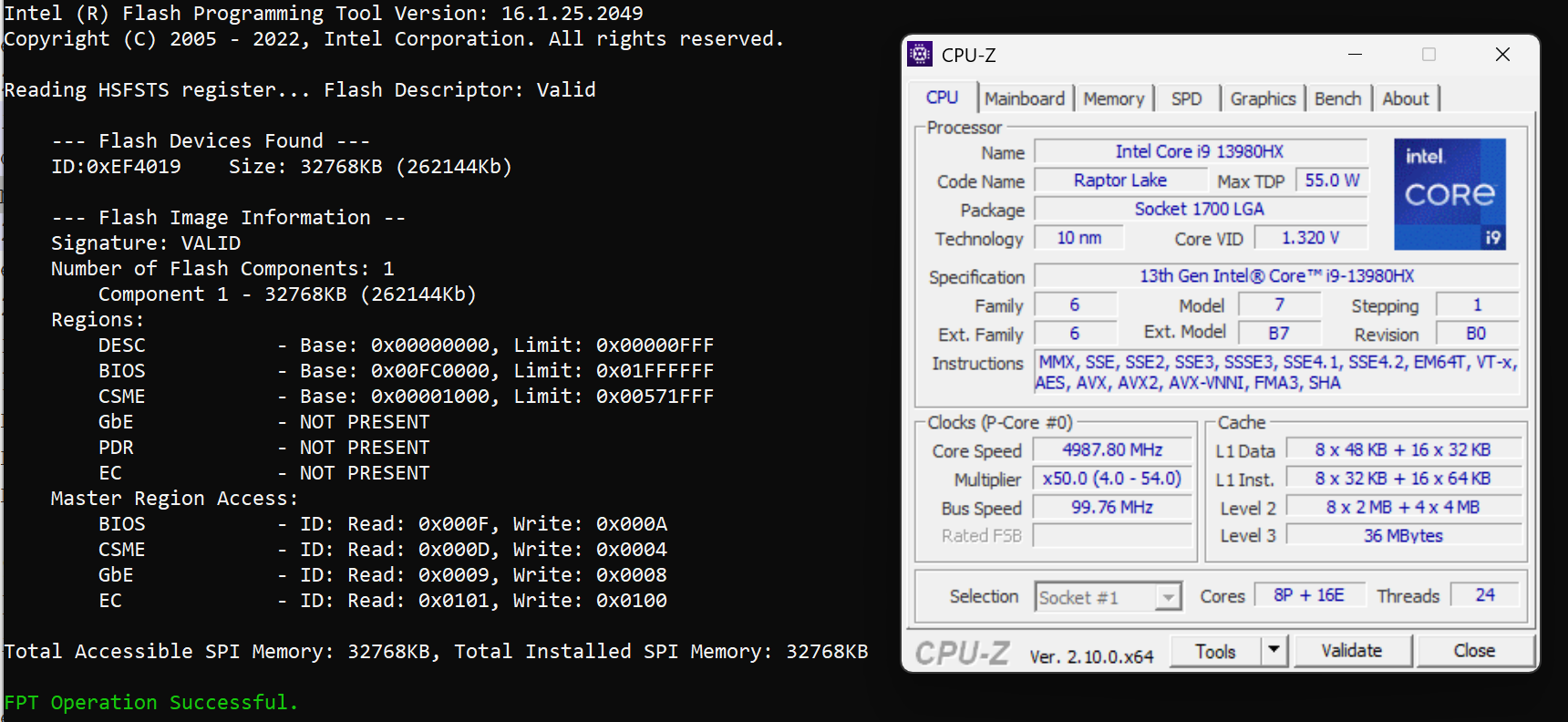

cpu
cpu1720×792 260 KB

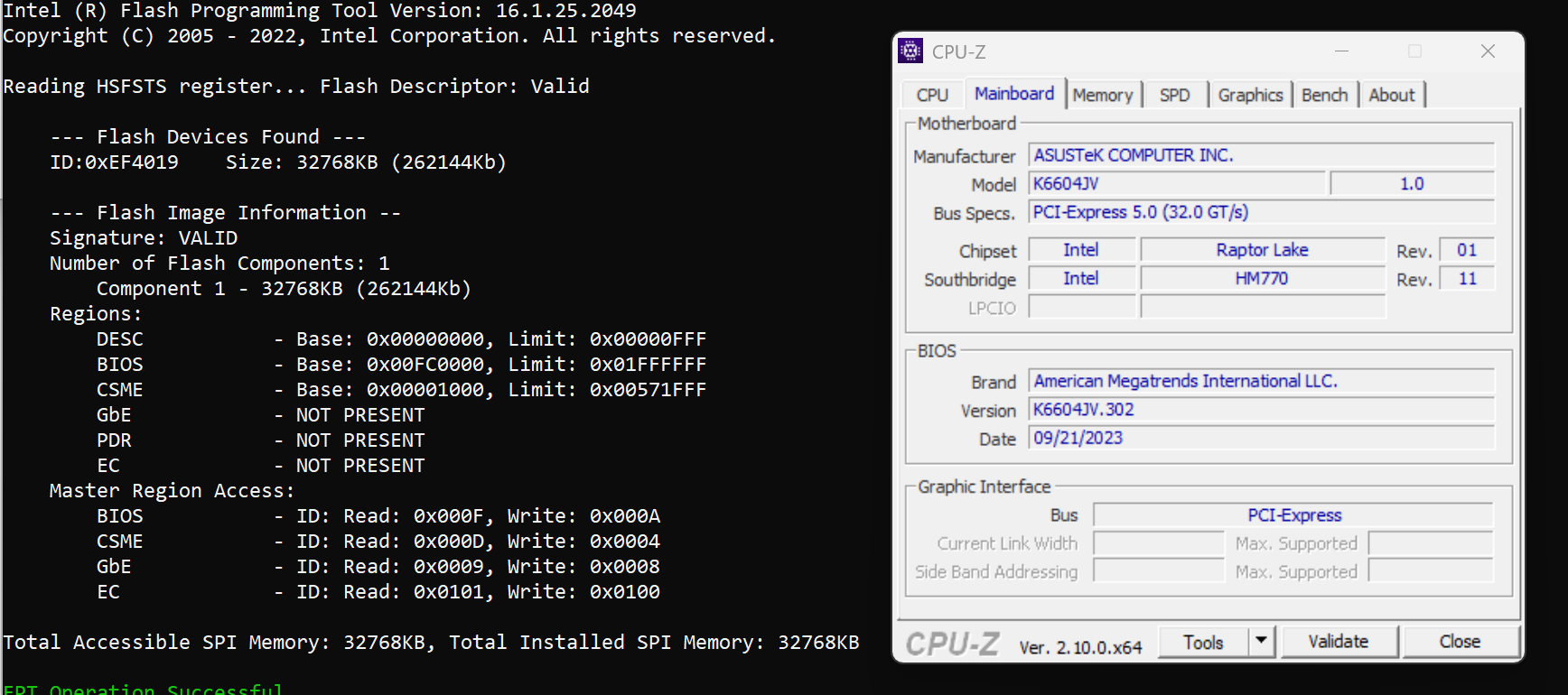

mainboard
mainboard1736×770 162 KB

I tryed set some BIOS advanced parameters to 0 to try to unlock undervolt protection off without any result.

0x282 0x0 UnderVolt Protection
0x284 0x0 UnderVolt Protection in Runtime
0x17C 0x0 SVID Support
0x1BB 0x0 IA CEP
0x175 0x0 IA Thermal Velocity Boost

I think it’s locked in the microcode but also flashing from Intel tools it’s locked and i’m unable to unlock from BIOS.

I also turned off Asus Firmware Resiliency off from Asus BIOS interface.
