Hi
I am having some issues with my BIOS. When I open the BIOS, there are no features that I need. I am here seeking your help.
Here are the details of my system:
Model: Dell model N4030 vga onboard
Current BIOS Version: A07
Desired Modification:Unlock advanced settings / Remove whitelist wifi.
Thank you very much in advance. I look forward to your response.I apologize for my level of English.Thank you very much.
Link bios: https://www.dell.com/support/home/ja-jp/drivers/driversdetails?driverid=v2nhn&msockid=0c5bef8ad5ee621d322afa59d4376389
or:
N4030A07.zip (2.1 MB)
Edit by Fernando: Thread title shortened and customized
Can someone help me plss
Check the ME version and download the corresponding version of CSME/ME System Tools, in FPT folder make full backup image “FPTW64 -d backup.bin”, for mod image “FPTW64 -bios -d bios_region.bin”.
It’s an old dell device there should be still use AMI platform.
Main root menu: [Guide] HowTo Unlock a Tongfang Chassis BIOS
Sub menu: AMIBCP 4.55
1 Like
hi @karfel

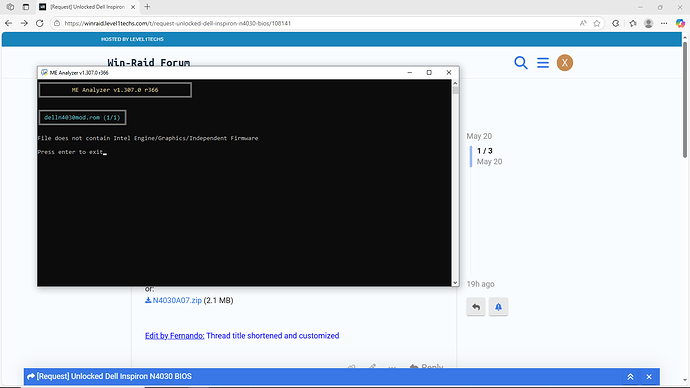

I tried everything but I can’t find the ME version of it.Can you help me?

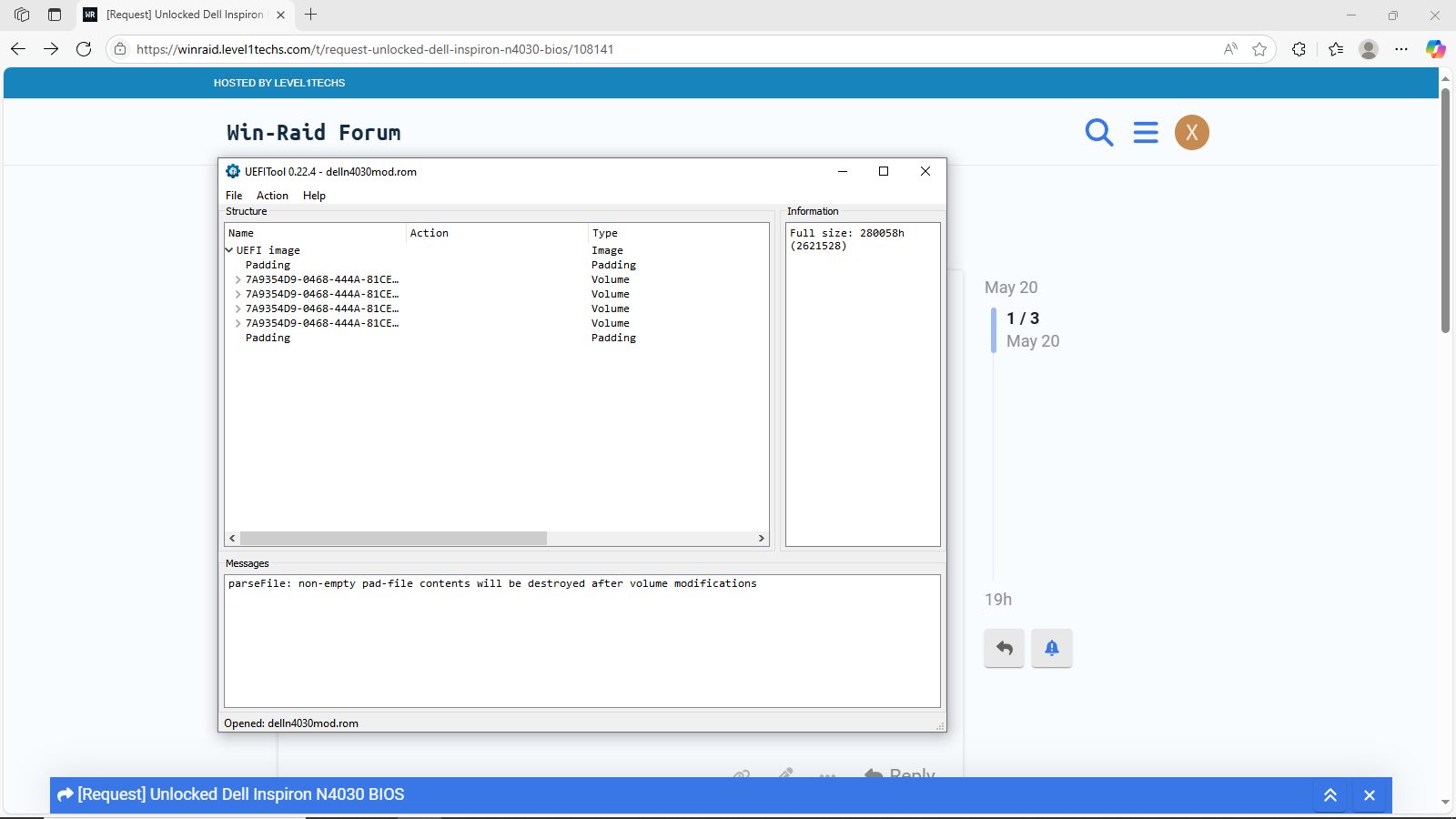

mod.rar (1.3 MB)

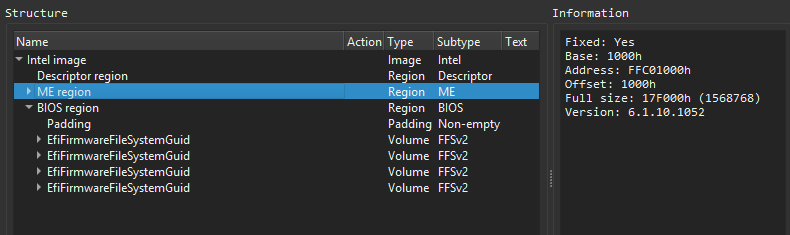

The full SPI bios is 4096kb, not only a bios region or a Dell bios update file, it uses ME FW 6.1 witch is not one of the easiest to work with, this is a full dump (complete regions expanded) of the same model, that’s all.
1 Like
It’s harder than I thought. I give up.
