Hello! Could you please tell me the model of the main BIOS chip on this board? Many thanks in advance!
Edit by Fernando: Thread moved into the “BIOS Requests” Category and title specified
Sir… google is your “friend”…the ICs markings are perfectly readable… what’s the issue here???

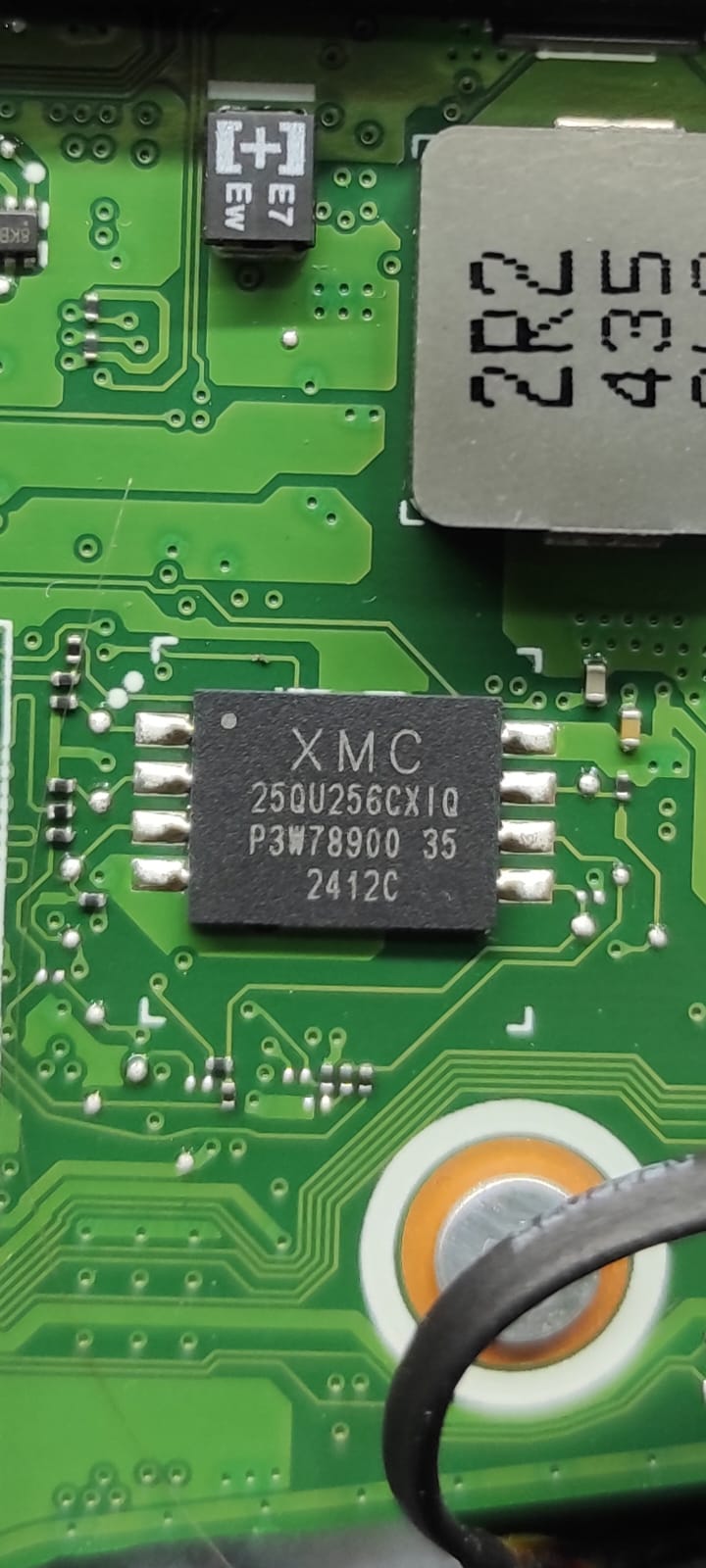

I asked this question here because I wasn’t sure which of them should contain the main BIOS firmware. I read the 25QU256CXIQ chip using an XGecu Pro T48, but it’s almost empty — about 90% of the chip’s memory is filled with FF.

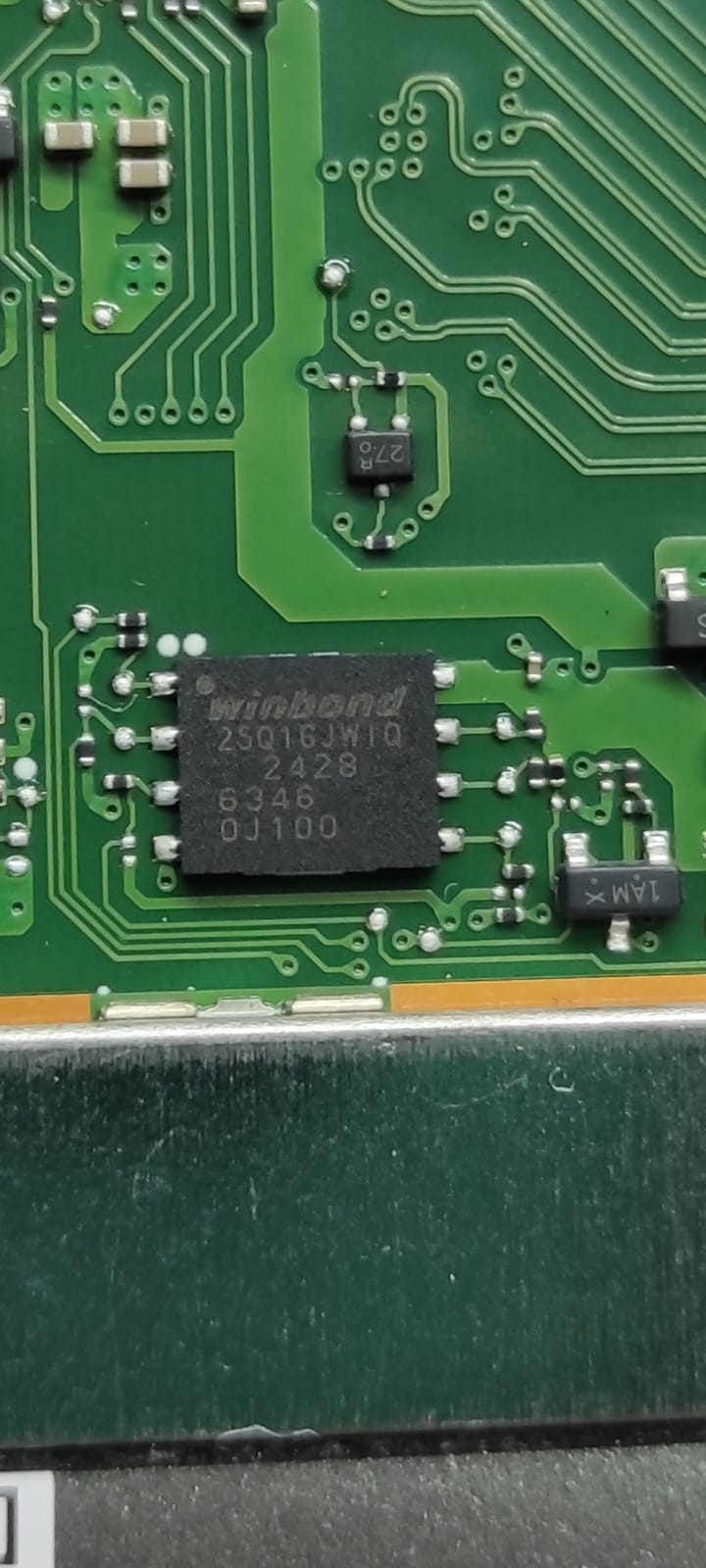

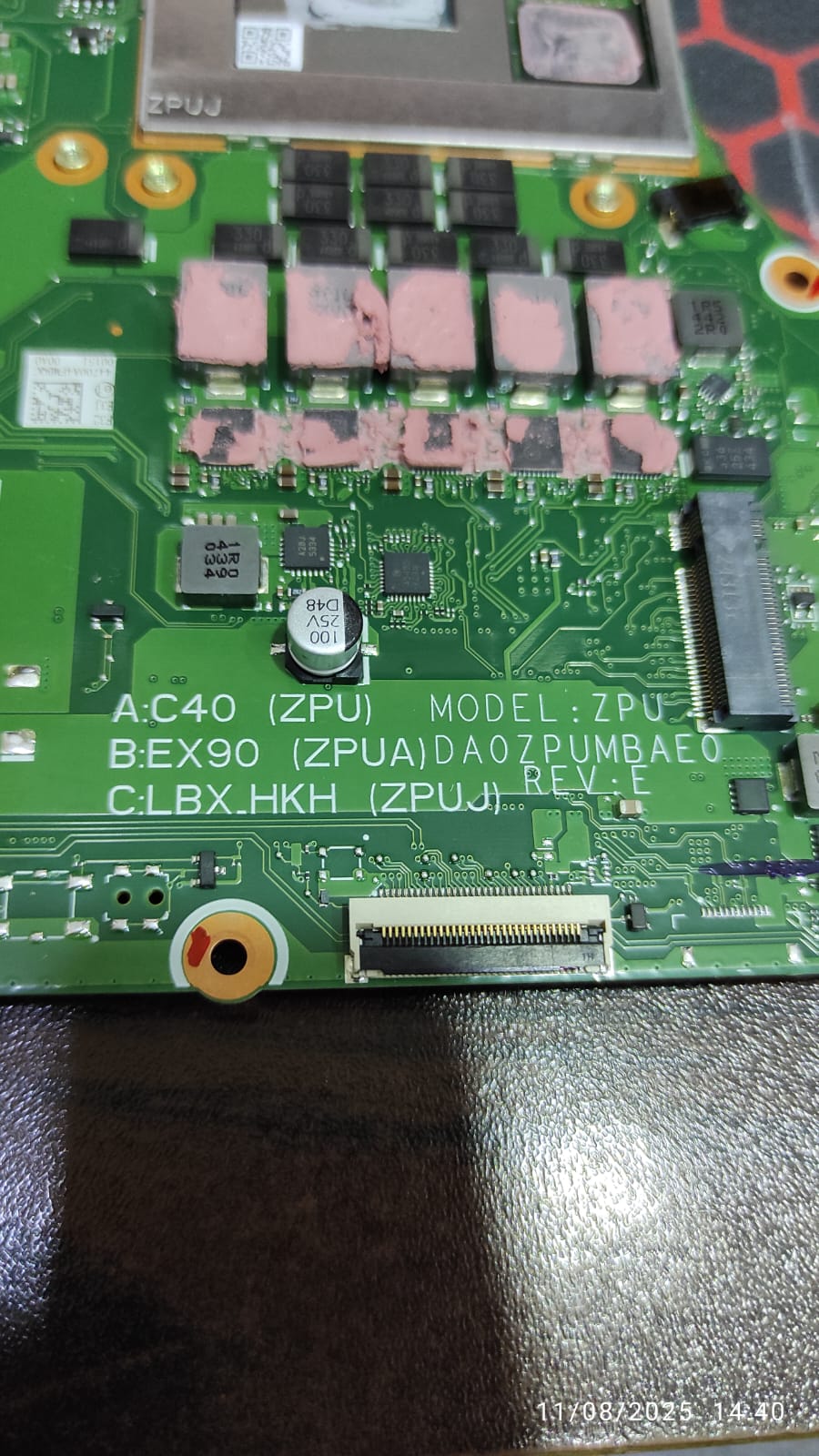

Acer Nitro (Compal LA-K181P FH51S) UC7 XMC 256Mbit should be main bios and UV49 Winbond should be vBios
…the almost empty and mostly FF is usually not a “good” reading rigth???.. programmer model apart.
The fact that I read the data from this chip correctly is 100%.
So it could be a problem with the chip itself, or someone before me interrupted the BIOS flashing process at the worst possible moment?
Anything is possible then, right… im not the owner or the one with the system on a repair bench…
EDIT: Do please attach exact laptop model info to the initial post, for better future user follow with similar issues, thank you
Ok! Anyway, thank you very much for taking the time to answer me.
