The user in this thread has a BIOS image which has a section with GUID: 9F8B1DEF-B62B-45F3-8282-BFD7EA19801B and @lfb6 says that it is an ME update section.
Searching for some BIOS for my B360 motherboard I found that version 115 available on Microsoft Update catalog has that GUID, but Flash Image Tool won’t recognize it as it is an UEFI image and not an Intel image (in other words, it it a BIOS image, and not a complete firmware image).
However, lfb6 wrote in the already mentioned post: “ME seems to unpack OK, config can be read by FIT”. So I would like to know how to read that ME update binary using Flash Image Tool.

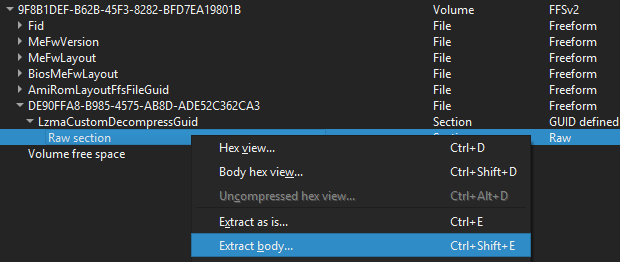

I have tried to extract it (as it is) using UEFITool. I have tried extracting the whole section and the raw binary under the GUID starting by “DE90” (which I think it is really the ME binary), but no luck. FIT won’t read it.
This is the BIOS image I’m talking about:
360H4W0X.zip (7.1 MB)
