Hi everyone,

I’m looking for some help modding the BIOS of my AORUS 15G XC (Intel i7-10870H / RTX 3070 Laptop).
I’ve already created a full BIOS dump using Intel FPT, but I’m not sure what exactly to modify and I’d rather not risk bricking my machine by doing it blindly.

System info:

What I’m trying to achieve:

  • Unlock hidden BIOS menus (Advanced, Power, Thermal, etc.)
  • Enable undervolting (CPU and/or cache)
  • Use all my ram abilities

Tools used so far:

  • Dump created using: Intel FPTw64
  • I haven’t made any modifications yet – looking for advice or a clean mod based on my dump.

Caps:

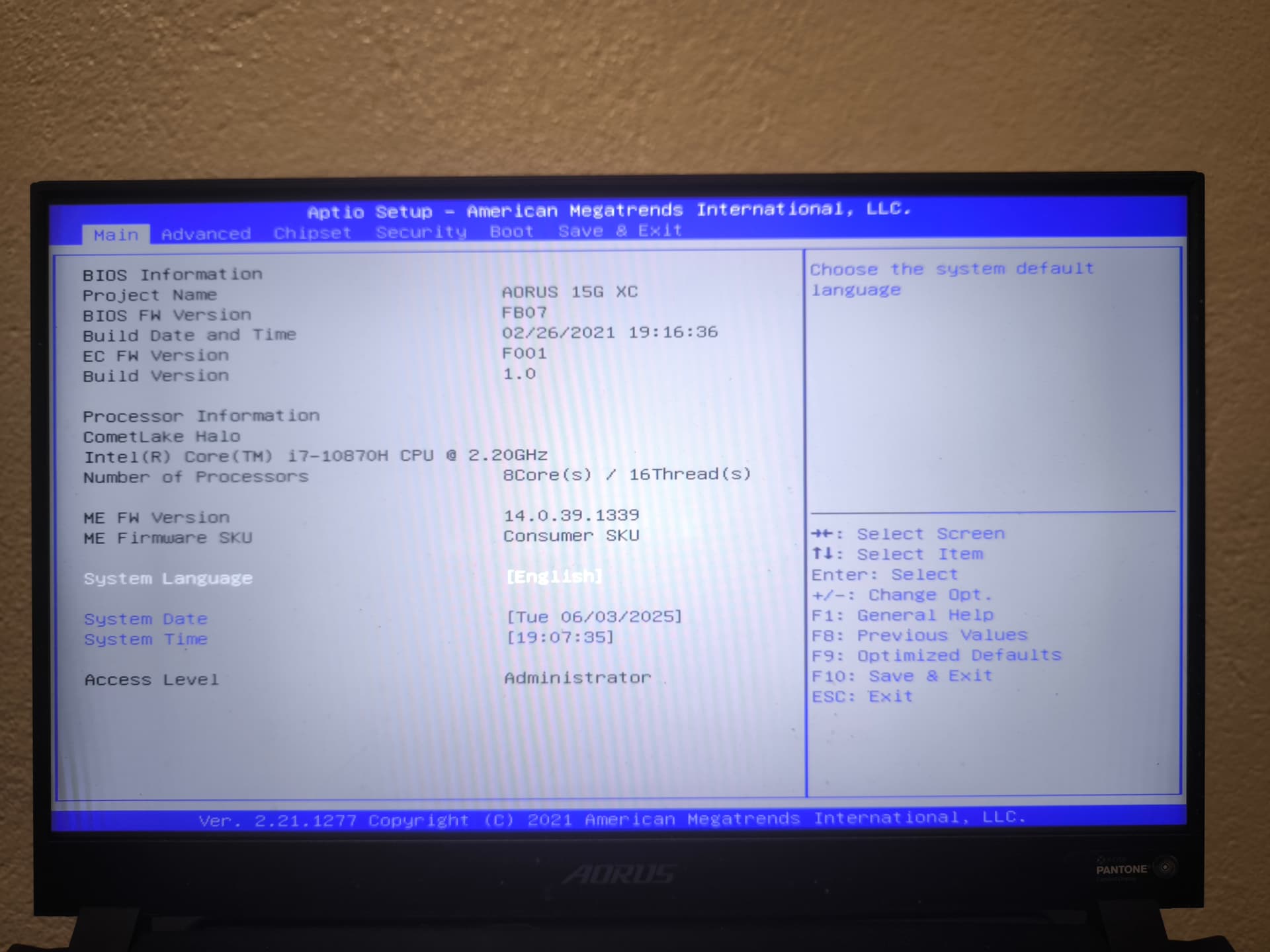

Main
Main1920×1440 135 KB

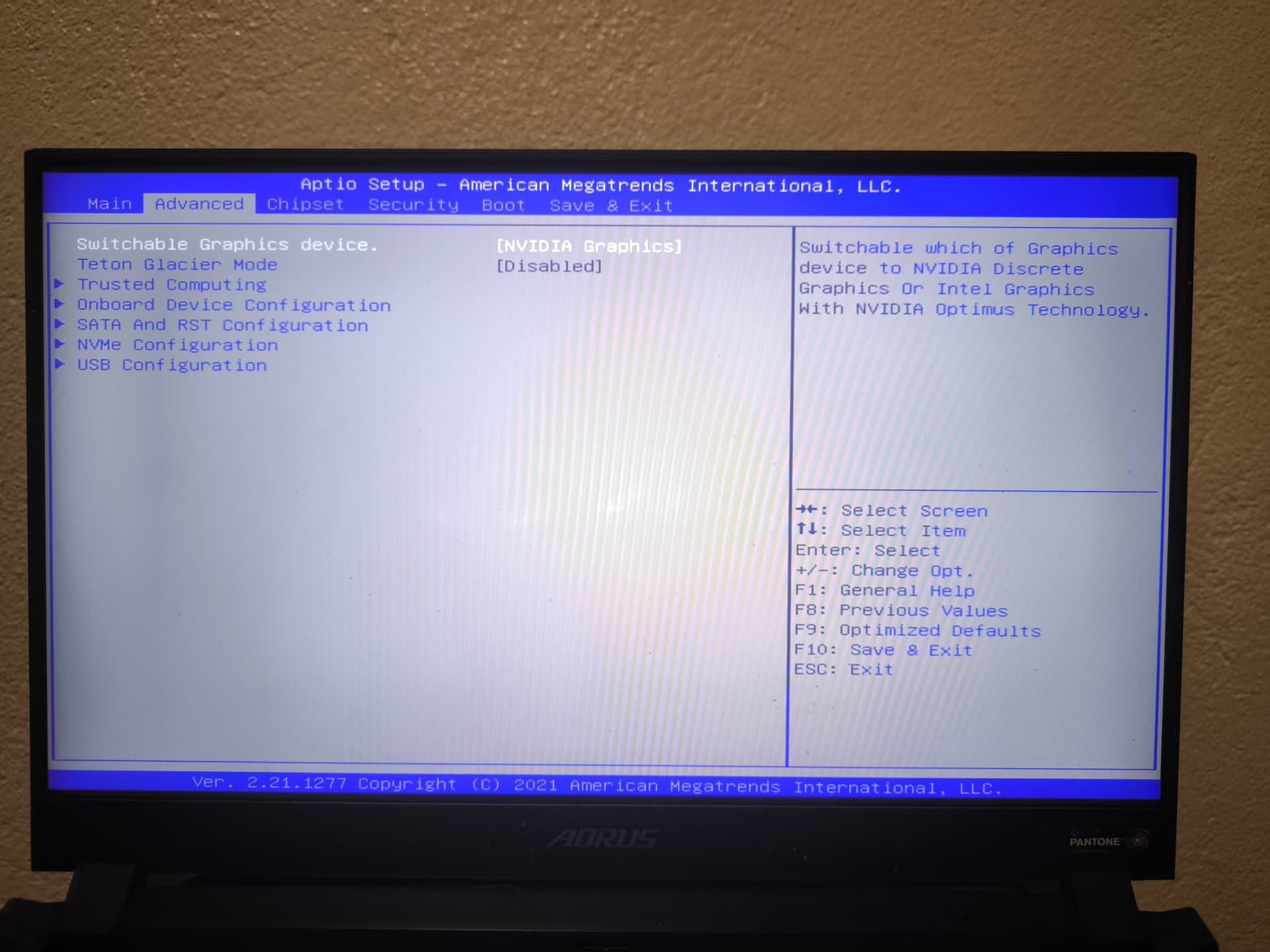

Advanced
Advanced1920×1440 157 KB

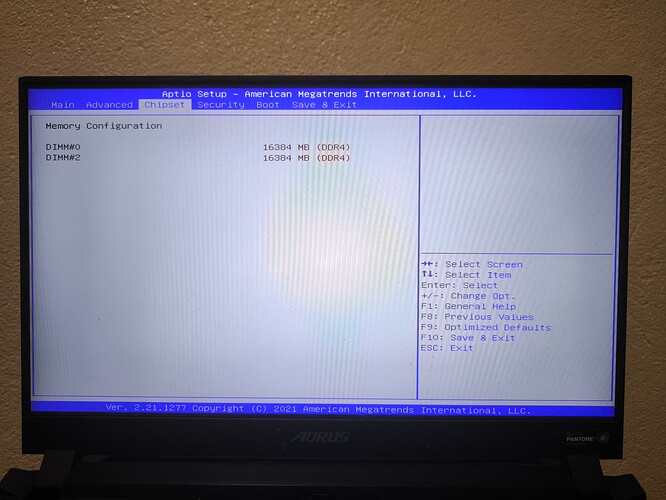

Chipset
Chipset1920×1440 151 KB

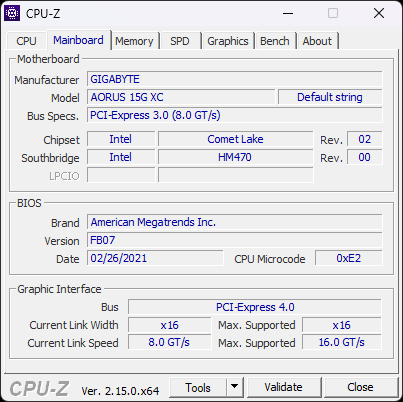

CPUZ
CPUZ403×402 12.4 KB

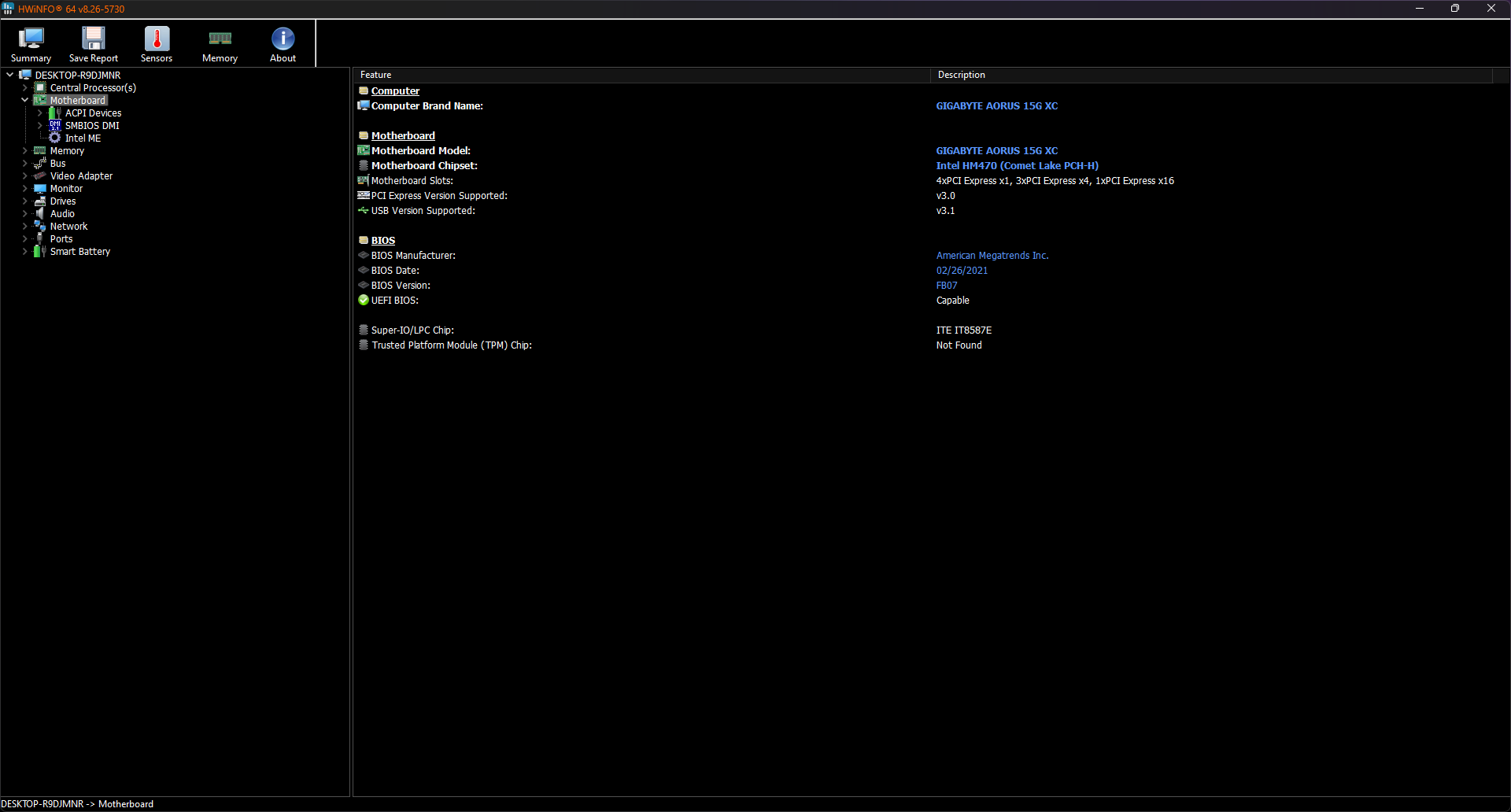

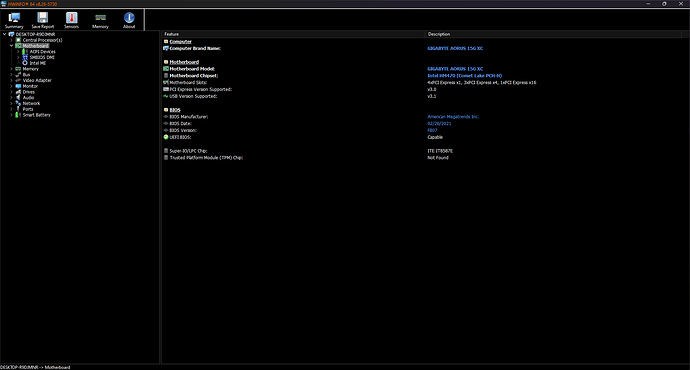

HWINFO
HWINFO1920×1032 47.9 KB

I’d really appreciate any guidance, mod help, or if someone more experienced could patch the dump directly for me. :pray:

Thanks in advance!

PS: I’m fully aware of the risks involved with flashing a modded BIOS and take full responsibility.

1 Like
2

[Guide] Usage of AMI’s AptioV UEFI Editor + FPT Flash Method - BIOS/UEFI Modding / BIOS Modding Guides and Problems - Win-Raid Forum

[TOOL] UEFI Editor - BIOS/UEFI Modding / BIOS Modding Guides and Problems - Win-Raid Forum
Do NOT try to UNLOCK everything and do it by phases…it may reach a point that the boot will fail, since last mod, revert last mod action.

First, before any other operations:
See if the FD for bios_region write access is unlocked, you can flash the same region back to the system, to see if fpt lets you, cause besides this only unlocking FD or programmer, for mod files.

Using a bios_region dump of the current system: fpt -bios -f bios_reg.bin

[Guide] Unlock Intel Flash Descriptor Read/Write Access Permissions for SPI Servicing - Special Topics / Intel Management Engine - Win-Raid Forum

3

Thanks for the reply. I will read this guide and yes it is unlocked and I can actually flash the current dump. I did it last night via RU.EFI.

4

Here for some testing, this bios is doing the same trick as the Asus TUF A15 2020 (swapping ID). It will probably take more time to complete the settings you want, so bear with it, lol.
